290512000 Jabsco Manual Toilet Replacement Cylinder Assembly

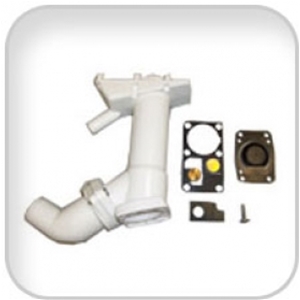

This part is brand new, old inventory. Includes all parts show in picture.
Jabsco Pump Cylinder Assy 290512000
Parts for Jabsco 29090 & 29120 Old Style Series & 59128 Discontinued Marine Heads. Kits A, B, C, D and E are sold as kits. You can view the contents of each kit by following the parts list below. If only seeking one single part, please contact sales for that specific part.
|
Kit |
Part No. |
Description |
|
A |
29045-0000 |
Major Service Kit Pump |
|
B |
29040-2000 |
Pump Assembly |
|
C |
29094-0000 |
Valve Cover Assembly |
|
D |
29051-2000 |
Pump Cylinder Assembly |
|
E |
29047-0000 |
Bowl Installation Kit |
| Key | Description | Part No. |
Qty A |
Qty B |
Qty C |
Qty D |
Qty E |
| 1 |
Bowl Compact Large |
59127-7002 18753-0060 |
1 | 1 | 1 | 1 | 1 |
| 2 |
Seat, Lid Compact Hinge Seat Large |
18753-0437 18753-0438 |
1 | 1 | 1 | 1 | 1 |
| 2a | Hinge Kit Caompact | 18753-0181 | 1 | 1 | 1 | 1 | 1 |
| 3 |
Hose Compact Large |
29035-0000 29035-0001 |
1 | 1 | 1 | 1 | 1 |
| 4 | Bowl Spud | 29048-0000 | 1 | 1 | 1 | 1 | 1 |
| 5 | Intake Elbow & O-ring | 29048-0000 | 1 | 1 | 1 | 1 | 1 |
| 6 | Base, Plug & O-ring Ass. | 29041-1000 | 1 | 1 | 1 | 1 | 1 |
| 7 | Plug & O-ring Ass. | 29028-1000 | 1 | 1 | 1 | 1 | 1 |
| 8 | O-ring (Plug) | 1 | 1 | 1 | 1 | 1 | 1 |
| 9 | O-ring (Bowl) | 44101-1000 | 1 | 1 | 1 | 1 | 1 |
| 10 | Bolt | 1 | 1 | 1 | 1 | 1 | 4 |
| 11 | Nut | 1 | 1 | 1 | 1 | 1 | 4 |
| 12 | Washer SS | 1 | 1 | 1 | 1 | 1 | 4 |
| 13 | Washer Nylon | 1 | 1 | 1 | 1 | 1 | 4 |
| 14 | Cap | 1 | 2 | 1 | 1 | 1 | 4 |
| 15 | Base Valve Gasket | 29043-0000 | 1 | 1 | 1 | 1 | 1 |
| 16 | Handle w/bumper washer | 29026-0000 | 1 | 1 | 1 | 1 | 1 |
| 17 | Seal Assembly | 29044-0000 | 1 | 1 | 1 | 1 | 1 |
| 18 | Top Valve Seat | 1 | 1 | 1 | 1 | 1 | 1 |
| 19 | CAM | 1 | 1 | 1 | 1 | 1 | 1 |
| 20 | Top Valve Gasket | 29042-0000 | 1 | 1 | 1 | 1 | 1 |
| 21 | O-ring (Flush Lever) | 1 | 1 | 1 | 1 | 1 | 1 |
| 22 | Flush Control Lever | 1 | 1 | 1 | 1 | 1 | 1 |
| 23 | Screw (Flush Lever) | 1 | 1 | 1 | 1 | 1 | 1 |
| 24 | Screw (Valve Cover) | 1 | 1 | 6 | 6 | 1 | 1 |
| 25 | Valve Cover | 1 | 1 | 1 | 1 | 1 | 1 |
| 26 | Pump Cylinder | 1 | 1 | 1 | 1 | 1 | 1 |
| 27 | Piston Rod O-ring Ass. | 29046-0000 | 1 | 1 | 1 | 1 | 1 |
| 28 | O-ring (Piston) | 29017-1000 | 1 | 1 | 1 | 1 | 1 |
| 29 | Screw (Pump Cylinder) | 1 | 1 | 2 | 1 | 2 | 1 |
| 30 | Discharge Flange | 29091-0000 | 1 | 1 | 1 | 1 | 1 |
|
31 32 |
Joker Valve Discharge Elbow |
29092-0000 29029-0000 |
1
|
1 1 |
1 |
1 1 |
1 |
