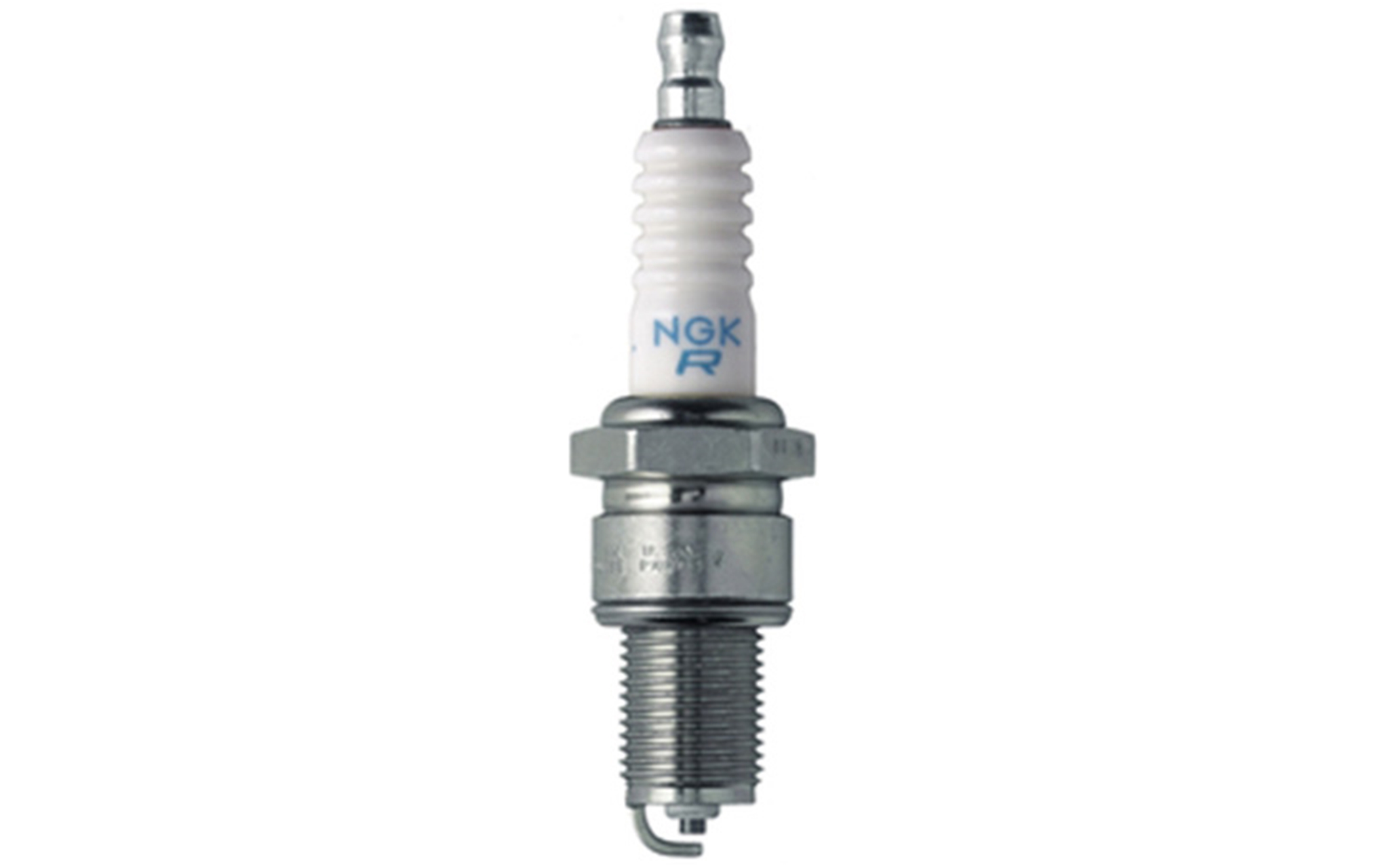

NGK Spark Plug DCPR7E 3932
NGK's Standard Plugs are Constructed for Longer Life and Optimum Performance.
Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
Corrugated Ribs Prevent Flashover
Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
Copper Core Aids in Heat Removal
Triple Seals Prevent Leakage
Body
Thread Size: 12mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Resistor: Yes
Resistor Value: 5K Ohm
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Removable Nut
Overall Height: JIS
Gap: .031" (0.8mm)
Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Projected
Ground Electrode
Material: Nickel
Type: Standard
Quantity: 1
Specifications
Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
Brand: NGK
Heat Range: 7
Longevity: 30k
Outboard Application
- 1995-2003 Evinrude
- 1995-2004 Johnson
- 2006 Mercury
