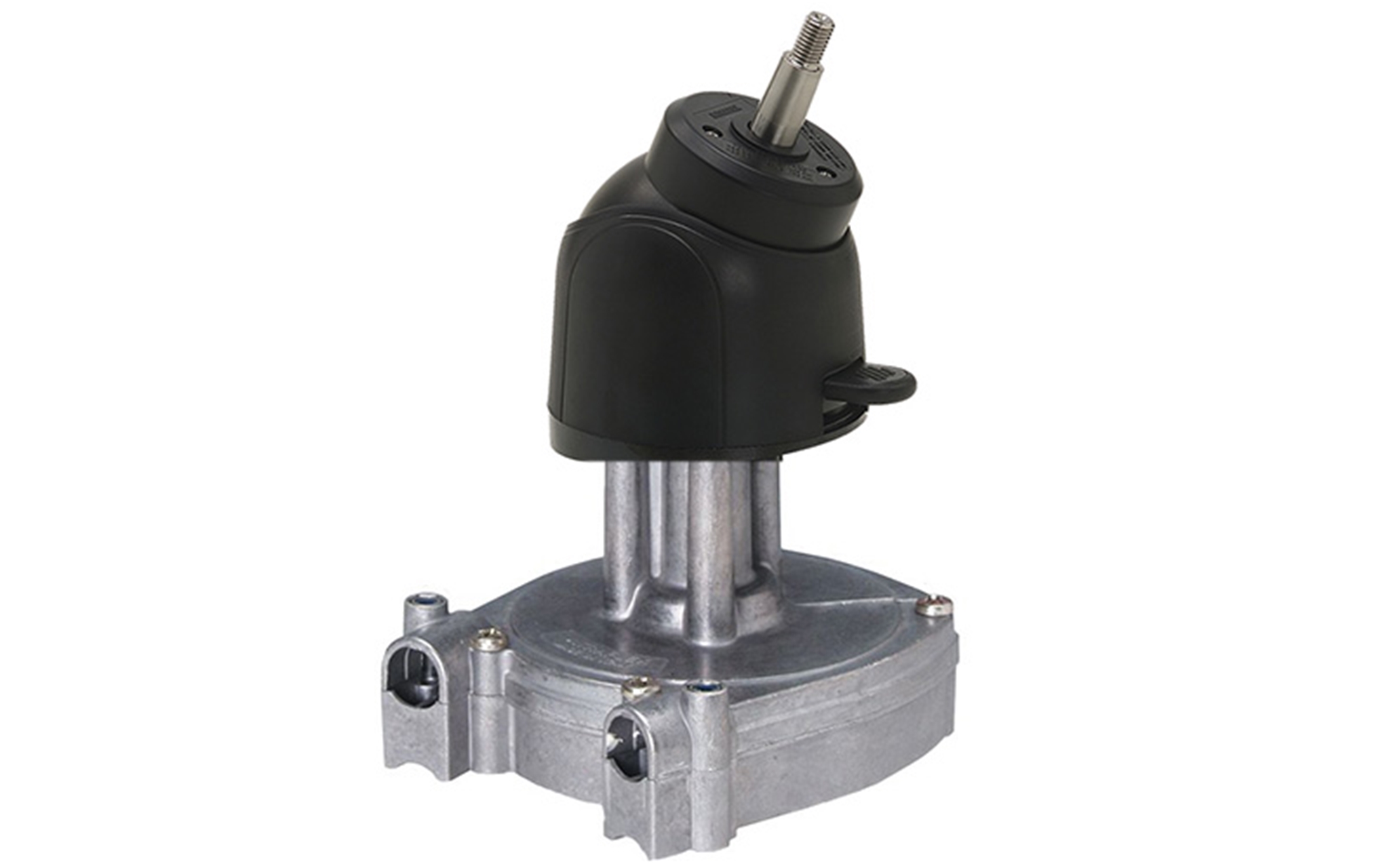

T81FC 38957 J Single-Cable Tilt Rotary Helm
T81FC is for Single cable applications. One X52 Tilt Mechanism is required for each helm. X52 Tilt Mechanism sold separately. Tilt mechanism: X52 - 39250 U NOTE: X52 tilt mechanism fits Uflex tilt
mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems Steering cable: M66 NOTE: Two M66 are needed with the T82FC system Optional steering wheel (see index) Engine connection kits (see index)
T81FC is for Single cable applications. One X52 Tilt Mechanism is required for each helm. X52 Tilt Mechanism sold separately.
T81FC 38957 J Single-Cable Tilt Rotary Helm
T81FC Specifications
Tilt range of 48° and five locking positions Fast connect, simple installation Tilt device eliminates under dash movement Standard 3/4” tapered shaft - stainless steel All stainless steel cable output ends
Corrosion resistant materials Lock-to-lock steering wheel turns: approx. 3.8 Stroke: 9” (228 mm)
Maximum allowable steering wheel diameter: 16” (406 mm) Minimum steering cable bend radius:
7.9” (200 mm) Available Helms T81FC, T82FC and T83NRFC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph our hydraulic steering systems are recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards
