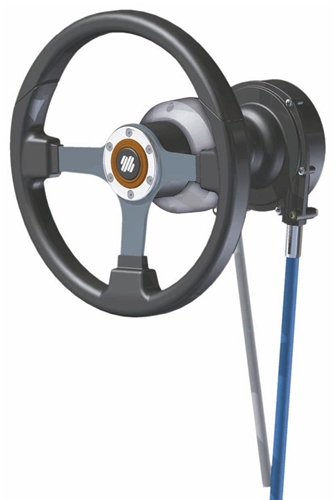

T91 - 42647 S - single cable steering helm
Specifically designed for high performance and high efficiency applications. Used with M90 Mach cable only (patented): performance, flexibility and durability increased by top qualitymaterials and construction. Fast connect, simple installation, patented end fitting.
T91 - 42647 S - single cable steering helm
Specifically designed for high performance and high efficiency applications.
FEATURES AND TECHNICAL SPECIFICATIONS:
Specifically designed for high performance and high efficiency applications. Used with M90 Mach cable only (patented): performance, flexibility and durability increased by top qualitymaterials and construction.
Fast connect, simple installation, patented end fitting. Stainless steel cable output end featuring patented gasket, engine side. Corrosion resistant materials. Particulary suitable where clearance is limited. Optional 90° or 20° installation. Standard 3/4” tapered shaft. Lock-to-lock steering wheel turns: approx. 4,2 Stroke: 9” (228 mm) Maximum allowable steering wheel diameter: 16” (406 mm). Minimum steering cable bend radius: 5.9” (150 mm) Minimal feedback. Compact for mounting. T91 steering system is not to be used on
boats equipped with engines that exceed the maximum horsepower rating of the boat. For boats faster than 50 mph our hydraulic steering systems are recommended. Exceeds EN 28848 safety standards and Exceeds ABYC P17 safety standards.
